網站首頁-產品中心-高精度斜床身數控車床 Slant bed lathe-高精度斜床身數控車床 Slant bed cnc lathe

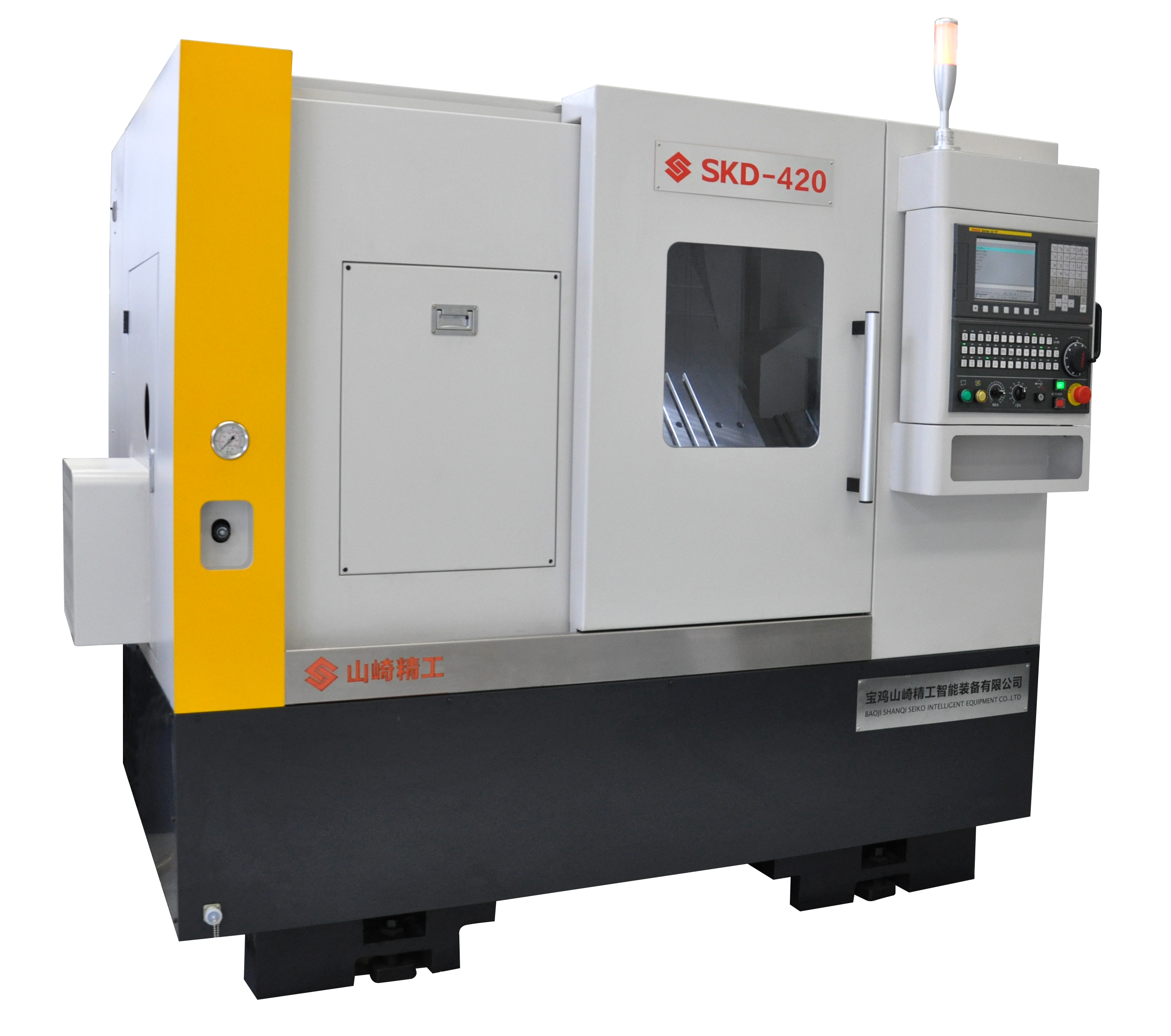

型號:SKD-420
產品時間:2025-07-14
簡要描述:整體斜床身,超大行程, 多種刀具組合,多樣化組合和復合加工能力。 Integral slat bed, large stroke, multiple cutting tool combinations. Diversified combinations and composite processing capability.
|
|
SKD-420 |
Capacity |
Max.swing dia.over bed/slide daddle |
Φ420mm / Φ120mm |
Max. machining diameter |
Φ360mm |
|
Max.machining length |
330mm |
|
Max. Bar diameter |
Φ45mm |
|
Travel |
Travel of X axis |
450mm |
Travel of Z axis |
330mm |
|
Spindle |
Power output(30min/continuous) |
7.5/11 kw |
Hydraulic Chuck |
6″center hollow |
|
Type of spindle |
JIS A2-5 |
|
Spindle bore |
Φ56mm |
|
Spindle speed |
4500 rpm |
|
Feed |
Rapid move of X axis |
24000mm/min |
Rapid move of Z axis |
24000mm/min |
|
Turret |
Cutting tool |
The row tools |
Size (turning /boring) |
20*20mm /Φ25mm |
|
Accuracy |
Positioning accuracy |
≤±0.005mm |
repeatability |
≤±0.003mm |
|
Other |
Machine weight |
3000kg |
Outline dimension:length×width×height |
1750×970×1850mm |
Variety combinations of turret , row knife of tool rest, power unit and Y axis.
